GK2586-24P series hollow electric rotary joint, with an inner diameter of 25mm and an outer diameter of 86mm, has a total of 24 channels and can support customization of up to 200 channels, high-speed data transmission, etc. It is used in collaborative control systems of packaging machinery, food processing turntables, etc.
GK2586-24P series hollow electric rotary joint Product Features:
1. Use high-quality AWG Teflon wire, which can withstand high temperatures and has excellent flame retardancy.
2. You can choose three currents of 5A, 10A, and 20A, and you can also customize multiple signal integrations (such as power lines + multiple industrial buses).
3. IP51 can be upgraded to IP68, 0.1N.m torque, contact material adapted to industrial grade, 0~85% RH humidity adaptation.
4. Support aviation plug + terminal customization, 24 channels are divided by group.
5. The speed is 0~250rpm, suitable for high-load current transmission and multi-signal integration of medium-sized equipment.
GK2586-24P series hollow electric rotary joint Product Parameters
| Parameter name | Parameter Value | |
| Power | Signal | |
| Dielectric strength | 800VCA@50Hz,60s | 300VCA@50Hz,60s |
| Insulation resistance | ≥1000MΩ/500VDC | ≥1000MΩ/300VDC |
| Dynamic resistance change value | ＜10mΩ | |
| Rated voltage | 0～440VDC/VAC | |
| Wire Specifications | AWG Teflon wire (actually change the wire specifications according to the load conditions) | |
| Wire length | Default 300mm (can be adjusted as required) | |
| Operating temperature | 0～85%RH | |
| Operating humidity | -30℃～+80℃ | |
| Protection level | IP51 | |
| Shell material | Metal/engineering plastics | |
| Rotational torque | 0.1N.m,+0.03N.m/6-way | |

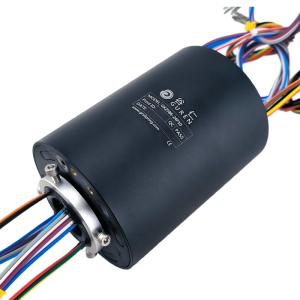

GK2586-24P series hollow electric rotary joint Product images
GK2586-24P series hollow electric rotary joint application
Wind power generation: connecting the rotating nacelle (generator, control system) with the fixed tower (grid, control system)
Industrial automation/robotics: rotating worktable/indexing plate, robot joints
Medical imaging equipment: CT scanner, X-ray machine (rotating C-arm)
Packaging machinery/filling equipment: power supply and signal control of filling head and labeling head
Testing equipment: such as turntable test, centrifugal test, etc.
Security monitoring: high-speed dome camera Ship/maritime: such as rotating radar mast, pod thruster, crane, etc.
