38.1mm Diameter PCB Pancake Slip Ring With 6mm Thickness For Small Flat Spaces

Name: 381mm Diameter PCB Pancake Slip Ring With 6mm Thickness For Small Flat Spaces
Brand: GuRen
Price: 19 USD

Ask Latest Price

Video Channel

Brand Name :GuRen

Model Number :PCB38-6P05

Certification :ISO9001.CE.RoHS

Place of Origin :china

MOQ :1

Price :＄19-199

Payment Terms :L/C,D/P,T/T

Supply Ability :1K units/week

Delivery Time :3 weeks ARO

Packaging Details :Standard/On Request

Aperture size :38.1mm

Outer diameter :95mm

Electrical pathways :6-way 5A

Rotation speed :0~100rpm

Thickness :6mm

Operating voltage :0~220V

Contact Now

Add to Cart

View Product Description

The PCB38-6P05 slip ring has an aperture suitable for most medium-sized rotating shaft equipment. It provides stable power transmission for six channels within a narrow installation space. Its compact design and reliable performance make it suitable for installation in industrial robot joints, automated rotary stations, and other equipment. Customizable circuits or signal lines are available.

PCB38-6P05 slip ring Features

1. Aperture diameter of 38.1mm accommodates thicker rotating shafts.
2. Outer diameter of 95mm ensures performance while controlling radial dimensions.
3. Operating temperature range of -30°C to +70°C, suitable for high and low temperature environments.
4. Contact material is gold-on-gold, offering excellent conductivity and wear resistance.
5. Default lead length is 200mm, but can be cut as needed to reduce wiring redundancy.
6. Rotation speed of 100rpm meets most medium-speed rotation needs.

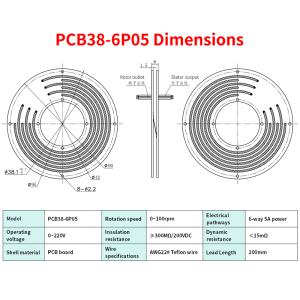

PCB38-6P05 slip ring Technical Specifications

Mechanical Specifications		Electrical Specifications
Speed	100 rpm	Voltage	220 VDC/VDC
Working life	3 million rpm	Insulation resistance	≥300MΩ/200VDC
Operating humidity	0～85%RH	Wire Specifications	Silicone wire
Operating temperature	-30°C to 70°C	Dielectric strength	100VAC@50Hz,60S
Contact material	Gold-Gold	Dynamic resistance change	<0.015Ω
Shell material	PCB board	Thickness	6 mm
Rotation torque	0.01N.m+0.03N.m/9channels	Number of routes	6-way5A
Protection level	IP40

PCB38-6P05 slip ring Applications

Designed for equipment with limited installation space, including:

Security monitoring pan/tilt systems
Industrial robot joints
Automated rotary stations
Test and measurement equipment
