GK2586-56P Ethernet rotary connector can connect 2 network cables, has 16 network channels, 2 shielded channels and 6 10A current channels, and is used for automation equipment that requires through-axis connection.
GK2586-56P Ethernet rotary connector Features
1. The product has an inner diameter of 25.4mm and an outer diameter of 86mm, with 56 channels.
2. It uses a CAT5E network cable to connect two network channels.
3. It has excellent anti-interference capabilities and can transmit Ethernet 10M/100M/1000M network signals.
4. It uses a precious metal gold plating process to ensure wear and oxidation resistance, and can achieve a rotation speed of 250rpm.

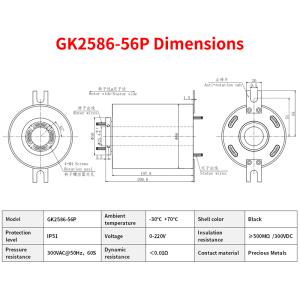

GK2586-56P Ethernet rotary connector Parameters
|
Ethernet |
2 (1000M) |
Connector Type |
RJ45 male connector at both ends (female connector optional) |
|
|
Mechanical Specifications |
Electrical Specifications |
|||
|
Parameter |
Numeric |
Parameter |
Parameter |
|
|
power |
Signal |
|||
|
Speed |
250rpm |
Voltage |
440V AC/VDC |
440V AC/VDC |
|
Working life |
2 million rpm |
Insulation resistance |
≥1000MΩ/500VDC |
≥1000MΩ/500VDC |
|
Operating humidity |
0～85%RH |
Wire Specifications |
AWG#17 tinned Teflon wire |
AWG#26tinned Teflon wire |
|
Operating temperature |
-30'C-80C |
Dielectric strength |
500VAC@50Hz,60S |
|
|
Contact material |
Precious Metals |
Dynamic resistance change value |
<0.01Ω |
|
|
Shell material |
Aluminum Alloy |
Wire length |
Standard length 300mm |
|
|
Rotation torque |
0.01N.m+0.03N.m/6 channels |
Electrical noise |
<10 milliohms |
|
GK2586-56P Ethernet rotary connector Application Scenario
Ethernet slip rings are widely used in industries such as Industry 4.0 and automation (smart factories, logistics sorting, CNC machining), security and intelligent monitoring (panoramic monitoring systems, border patrol equipment), energy and infrastructure (wind turbines, solar power stations, hydropower station gates), medical and scientific research equipment, etc.
